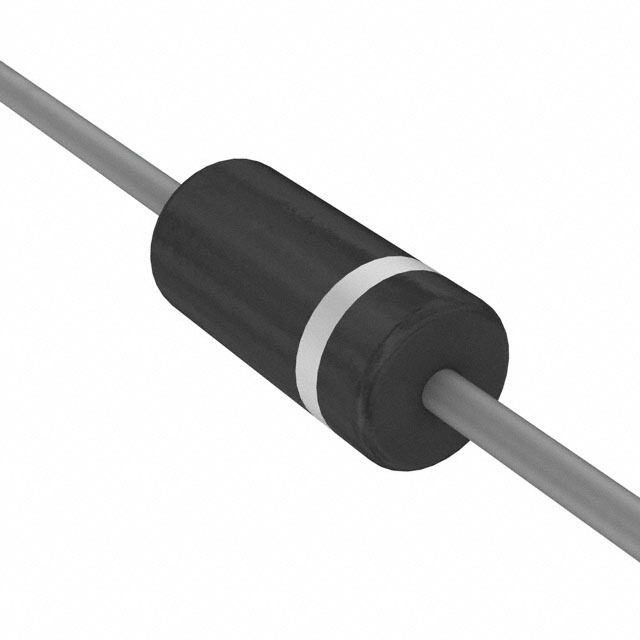

SA170CA-E3/73

SKU: 155781

Manufacturer: Vishay

TVS Diode Single Bi-Dir 170V 500W 2-Pin DO-15 Ammo

4560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	189
Maximum Clamping Voltage (V)	275
Maximum Reverse Stand-Off Voltage (V)	170
Maximum Peak Pulse Current (A)	1.8
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	500
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Commercial
Maximum Power Dissipation (mW)	3000
Product Weight (g)	0.432
Packing Method	Ammo
Original Package	DO-15
Pin Count	2
Standard Package Method	DO-204-AC
Diameter	3.5(Max)
Terminal Form	Through Hole
Package Length	6.55(Max)
PCB changed	2
