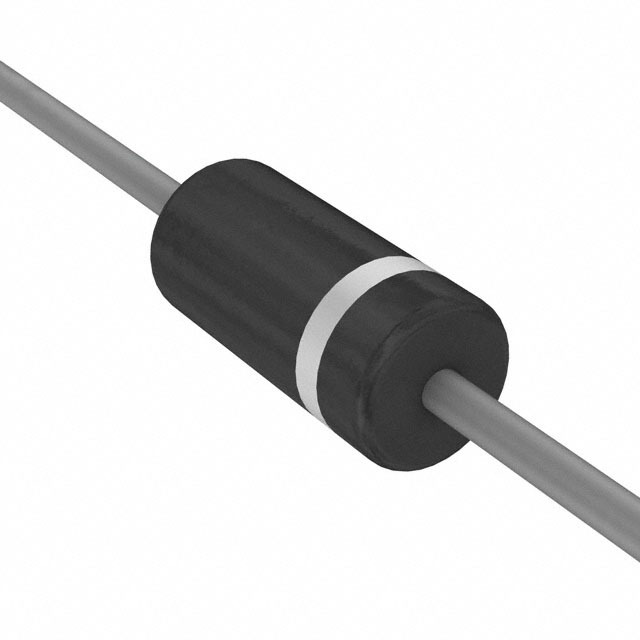

SA150A-E3/73

SKU: 70796

Manufacturer: Vishay

TVS Diode Single Uni-Dir 150V 500W 2-Pin DO-15 Ammo

1470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	167
Maximum Clamping Voltage (V)	243
Maximum Reverse Stand-Off Voltage (V)	150
Maximum Forward Voltage (V)	3.5
Peak Forward Surge Current (A)	70
Maximum Peak Pulse Current (A)	2.1
Maximum Reverse Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	500
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Commercial
Maximum Power Dissipation (mW)	3000
Product Weight (g)	0.432
Packing Method	Ammo
Original Package	DO-15
Pin Count	2
Standard Package Method	DO-204-AC
Diameter	3.5(Max)
Terminal Form	Through Hole
Package Length	6.55(Max)
PCB changed	2
