RS1PDHM3/84A

SKU: 127241

Manufacturer: Vishay

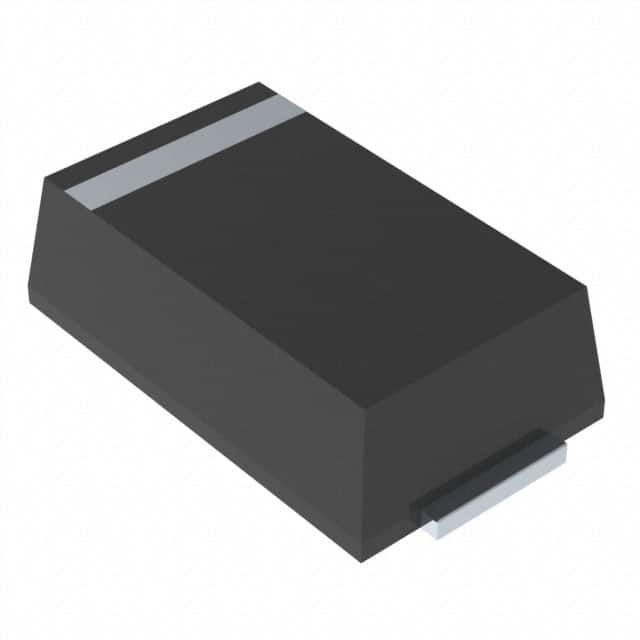

Rectifier Diode Switching 200V 1A 150ns Automotive 2-Pin SMP T/R

2300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	1
Peak Non-Repetitive Surge Current (A)	30
Peak Forward Voltage (V)	1.3
Peak Reverse Current (uA)	1
Peak Reverse Recovery Time (ns)	150
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	SMP
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.15(Max)
Package Length	3.61(Max)
Package Width	2.18(Max)
