MURD620CT

SKU: 119781

Manufacturer: Vishay

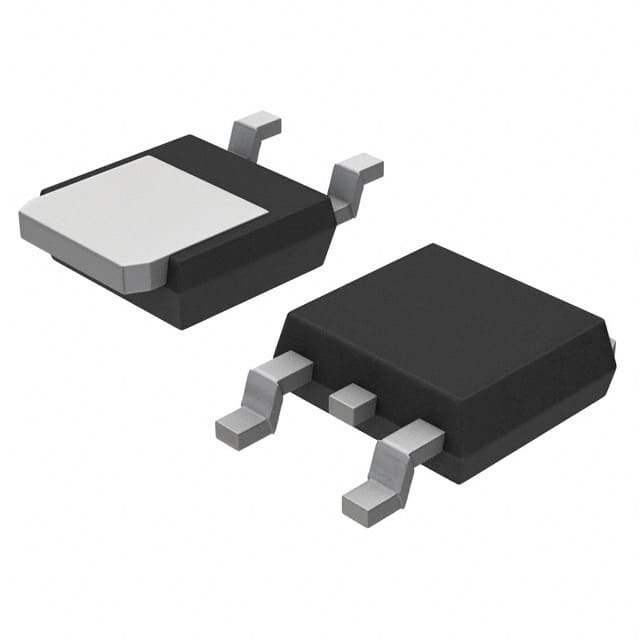

Rectifier Diode Switching 200V 6A 35ns Automotive 3-Pin(2+Tab) DPAK

80 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Type	Switching Diode
Maximum DC Reverse Voltage (V)	200
Configuration	Dual Common Cathode
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	6
Peak Non-Repetitive Surge Current (A)	50
Peak Forward Voltage (V)	1.2
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	35
Operating Temperature-Min	-65
Operating Temperature-Max	175
Original Package	DPAK
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.39(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
