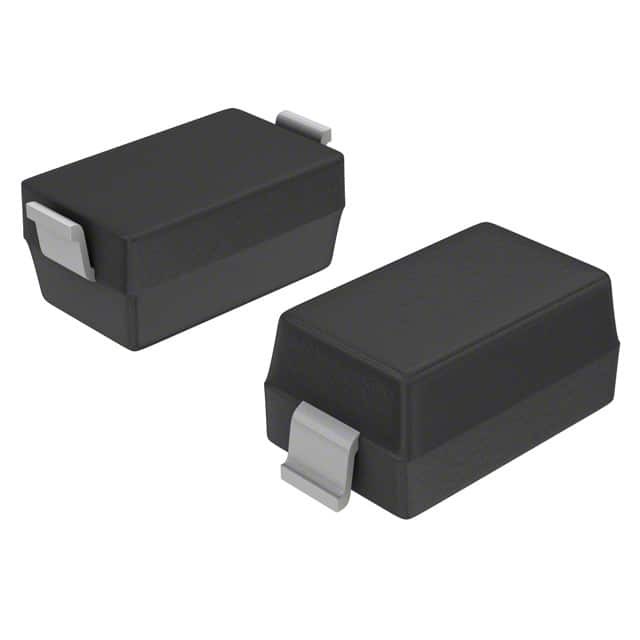

MMSZ5242C-G3-08

SKU: 30787

Manufacturer: Vishay

Zener Diode Single 12V 2% 30Ohm 500mW 2-Pin SOD-123 T/R

2300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	12
Zener Voltage Tolerance	2%
Maximum Forward Voltage (V)	0.9
Maximum Power Dissipation (mW)	500
Test Current (mA)	20
Maximum Reverse Leakage Current (uA)	1
Maximum Zener Impedance (Ohm)	30
Maximum Power Dissipation @ 25C (mW)	500
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Commercial
Typical Voltage Temperature Coefficient	0.077%/°C
Packing Method	Tape and Reel
Product Weight (g)	0.0103
Original Package	SOD-123
Pin Count	2
Standard Package Method	SOD
Terminal Form	Surface Mount
Package Height	1.25(Max)
Package Length	2.85(Max)
Package Width	1.7(Max)
PCB changed	2
