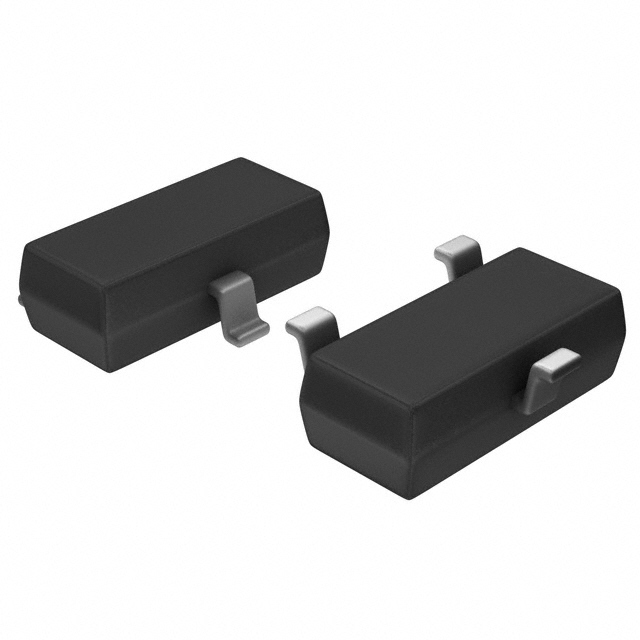

MMBZ27VDA-HE3-08

SKU: 16640

Manufacturer: Vishay

ESD Suppressor Diode Zener Uni-Dir/Bi-Dir 22V Automotive 3-Pin SOT-23 T/R

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	Yes
PPAP	Unknown
Type	Zener
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	2
Maximum Working Voltage (V)	22
Maximum Clamping Voltage (V)	38
Maximum Leakage Current (uA)	0.08
Maximum Power Dissipation (mW)	300
Peak Pulse Power Dissipation (W)	40
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3.1(Max)
Package Width	1.43(Max)
PCB changed	3
