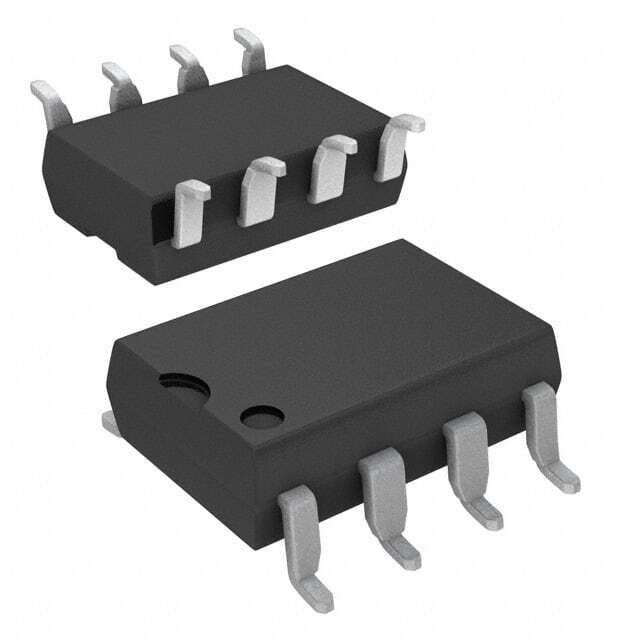

MCT6-X007T

SKU: 77060

Manufacturer: Vishay

Optocoupler DC-IN 2-CH Transistor DC-OUT 8-Pin PDIP SMD T/R

76080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor
Number of Channels per Chip	2
Minimum Isolation Voltage (Vrms)	5300
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.5
Collector-Emitter Voltage-Max (V)	30
Maximum Current Transfer Ratio (%)	50(Typ)
Standard	BSI
Maximum Collector Current (mA)	30
Maximum Collector-Emitter Saturation Voltage (mV)	400
Maximum Power Dissipation (mW)	400
Typical Forward Voltage (V)	1.25
Maximum Forward Current (mA)	60
Packing Method	Tape and Reel
Minimum Current Transfer Ratio (%)	20
Current Transfer Ratio Test Current (mA)	10
Standard Package Method	DIP
Pin Count	8
Original Package	PDIP SMD
Terminal Form	Surface Mount
Package Height	3.81(Max)
Package Length	9.91(Max)
Package Width	6.81(Max)
PCB changed	8
