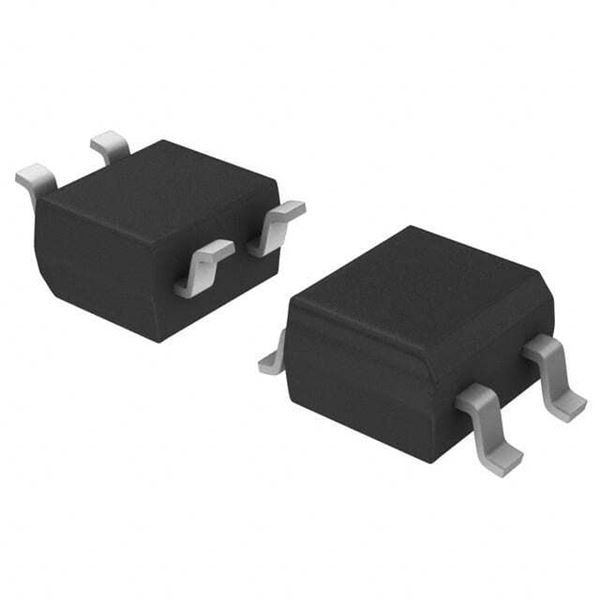

MB6S-E3/80

SKU: 69985

Manufacturer: Vishay

Rectifier Bridge Diode Single 600V 0.8A 4-Pin TO-269AA T/R

133020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	600
Peak Average Forward Current (A)	0.8
Peak RMS Reverse Voltage (V)	420
Peak Non-Repetitive Forward Surge Current (A)	35
Peak Forward Voltage (V)	1@0.4A
Peak Reverse Current (uA)	5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	TO-269AA
Pin Count	4
Standard Package Method	TO-269AA
Terminal Form	Surface Mount
Package Height	2.7(Max)
Package Length	4.95(Max)
Package Width	4.1(Max)
