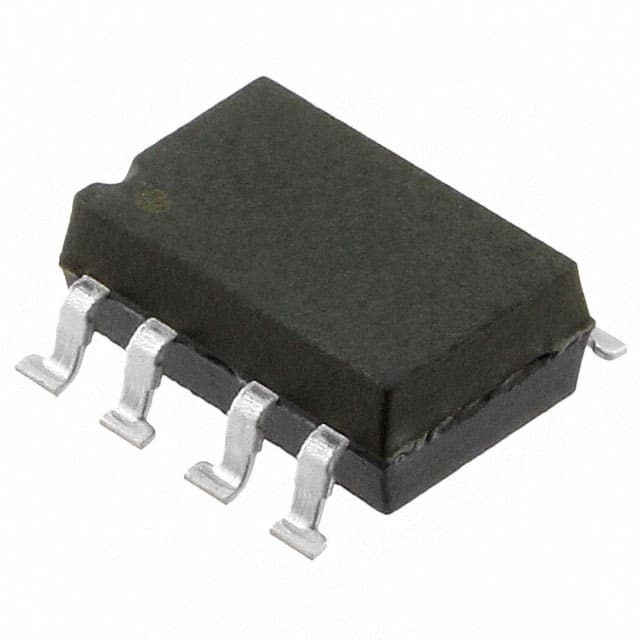

LH1522AAC

SKU: 40546

Manufacturer: Vishay

Solid State Relay 50mA 1.45V DC-IN 0.2A 200V AC/DC-OUT 8-Pin PDIP SMD Tube

450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.41.00.60
Automotive	No
PPAP	No
Input Type	DC
Minimum Input Voltage (V)	1.15
Maximum Input Voltage (V)	1.45
Maximum Input Current (mA)	50
Maximum Output Voltage (V)	200
Maximum Output Current (A)	0.2
Output Device	MOSFET
Output Type	DC
I/O Isolation Voltage (V)	5300(RMS)
Maximum Power Dissipation (mW)	600
Circuit Arrangement	2 Form A
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Standard Package Method	DIP
Original Package	PDIP SMD
Pin Count	8
Terminal Form	Surface Mount
Package Height	3.55
Package Length	10.16(Max)
Package Width	6.65
PCB changed	8
