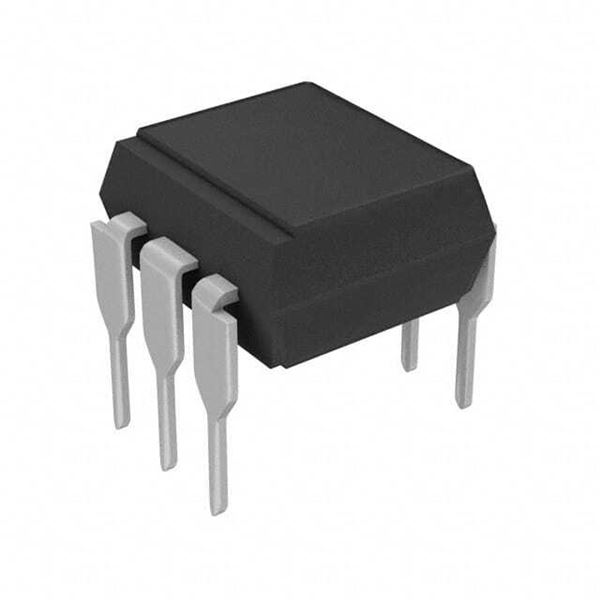

K3010P

SKU: 125256

Manufacturer: Vishay

Triac AC-OUT 1-CH 250V 6-Pin DIL

5910 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Number of Channels per Chip	1
Zero-Crossing Circuit	No
Standard	BSI
Output Device	Triac
Output Type	AC
Maximum Output Voltage (VAC)	175
Minimum Isolation Voltage (Vrms)	3750
Typical Forward Voltage (V)	1.25
Maximum Forward Voltage (V)	1.6
Repetitive Peak Off-State Voltage (V)	250
Maximum Reverse Voltage (V)	5
Typical Critical Rate of Rise of Off-State Voltage (V/us)	10
Maximum Forward Current (mA)	80
Minimum Trigger Current (mA)	8(Typ)
Maximum Continuous Output Current (mA)	100
Maximum Power Dissipation (mW)	350
Operating Temperature-Min	-40
Operating Temperature-Max	85
Standard Package Method	DIP
Original Package	DIL
Pin Count	6
Terminal Form	Through Hole
Package Height	4.2
Package Length	8.8(Max)
Package Width	6.4(Max)
PCB changed	6
