IRLZ14PBF

SKU: 103878

Manufacturer: Vishay

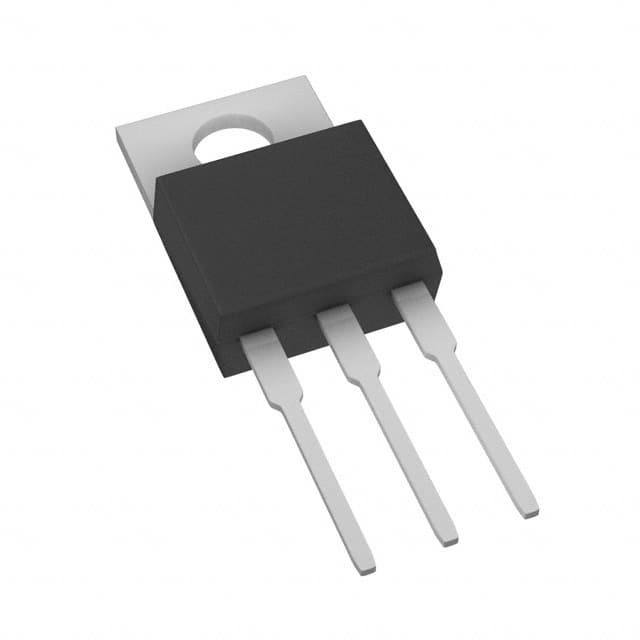

Trans MOSFET N-CH 60V 10A 3-Pin(3+Tab) TO-220AB

2270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±10
Maximum Gate Threshold Voltage (V)	2
Maximum Continuous Drain Current (A)	10
Maximum Drain Source Resistance (mOhm)	200@5V
Typical Gate Charge @ Vgs (nC)	8.4(Max)@5V
Typical Gate to Drain Charge (nC)	6(Max)
Typical Gate to Source Charge (nC)	3.5(Max)
Typical Reverse Recovery Charge (nC)	340
Typical Input Capacitance @ Vds (pF)	400@25V
Typical Output Capacitance (pF)	170
Maximum Power Dissipation (mW)	43000
Typical Fall Time (ns)	26
Typical Rise Time (ns)	110
Typical Turn-Off Delay Time (ns)	17
Typical Turn-On Delay Time (ns)	9.3
Operating Temperature-Min	-55
Operating Temperature-Max	175
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.01(Max)
Package Length	10.41(Max)
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
