IRL640PBF

SKU: 75627

Manufacturer: Vishay

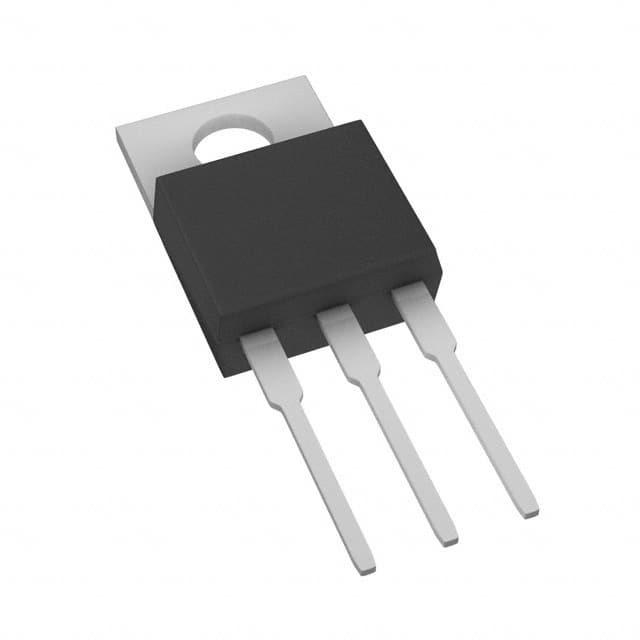

Trans MOSFET N-CH 200V 17A 3-Pin(3+Tab) TO-220AB

3010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	200
Maximum Gate Source Voltage (V)	±10
Maximum Continuous Drain Current (A)	17
Maximum Drain Source Resistance (mOhm)	180@5V
Typical Gate Charge @ Vgs (nC)	66(Max)@5V
Typical Input Capacitance @ Vds (pF)	1800@25V
Maximum Power Dissipation (mW)	125000
Typical Fall Time (ns)	52
Typical Rise Time (ns)	83
Typical Turn-Off Delay Time (ns)	44
Typical Turn-On Delay Time (ns)	8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.01(Max)
Package Length	10.41(Max)
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
