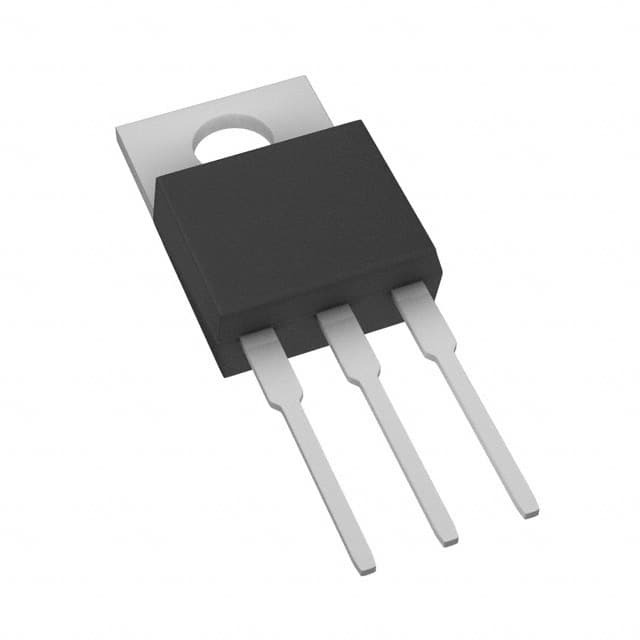

IRFZ40PBF

SKU: 96832

Manufacturer: Vishay

Trans MOSFET N-CH 50V 50A 3-Pin(3+Tab) TO-220AB

20 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	50
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	50
Maximum Drain Source Resistance (mOhm)	28@10V
Typical Gate Charge @ Vgs (nC)	40@10V
Typical Gate Charge @ 10V (nC)	40
Typical Input Capacitance @ Vds (pF)	2350@25V
Maximum Power Dissipation (mW)	150000
Typical Fall Time (ns)	12
Typical Rise Time (ns)	25
Typical Turn-Off Delay Time (ns)	35
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.01(Max)
Package Length	10.41(Max)
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
