IRFZ20PBF

SKU: 65865

Manufacturer: Vishay

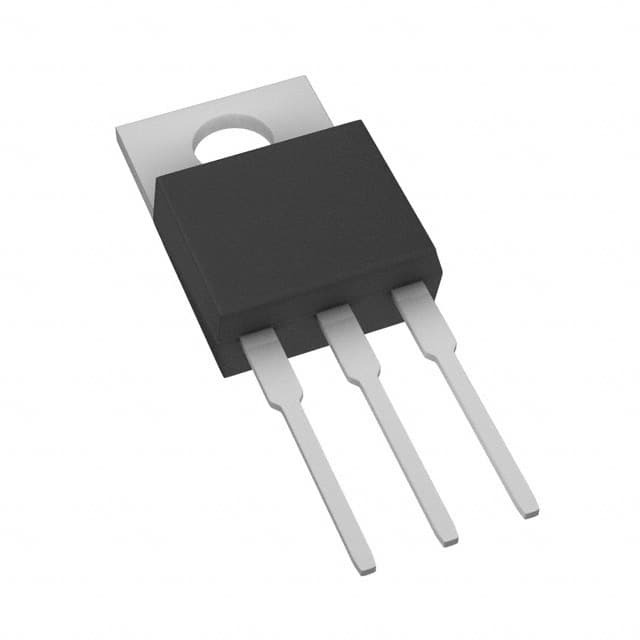

Trans MOSFET N-CH 50V 15A Automotive 3-Pin(3+Tab) TO-220AB

1360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	50
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	15
Maximum Drain Source Resistance (mOhm)	100@10V
Typical Gate Charge @ Vgs (nC)	12@10V
Typical Gate Charge @ 10V (nC)	12
Typical Gate to Drain Charge (nC)	3
Typical Gate to Source Charge (nC)	9
Typical Reverse Recovery Charge (nC)	400
Typical Input Capacitance @ Vds (pF)	560@25V
Typical Output Capacitance (pF)	250
Maximum Power Dissipation (mW)	40000
Typical Fall Time (ns)	15
Typical Rise Time (ns)	45
Typical Turn-Off Delay Time (ns)	20
Typical Turn-On Delay Time (ns)	15
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-220AB
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.01(Max)
Package Length	10.41(Max)
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
