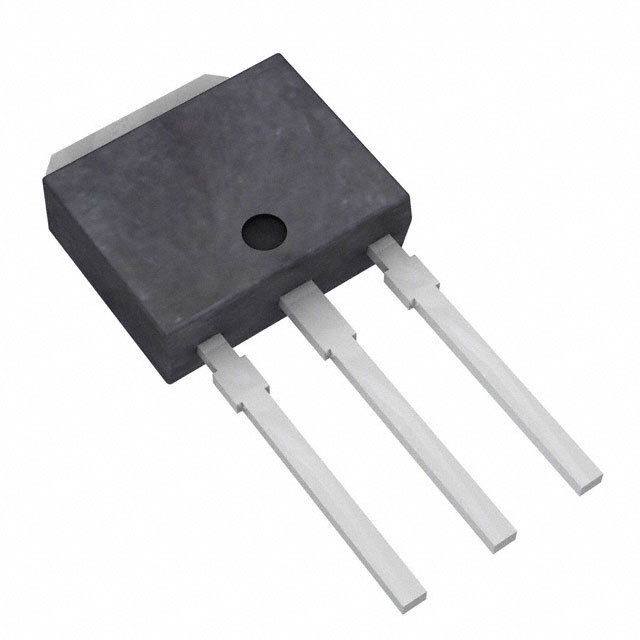

IRFU9024

SKU: 125177

Manufacturer: Vishay

Trans MOSFET P-CH 60V 8.8A 3-Pin(3+Tab) IPAK

630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	8.8
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	100
Maximum Drain Source Resistance (mOhm)	280@10V
Typical Gate Charge @ Vgs (nC)	19(Max)@10V
Typical Gate Charge @ 10V (nC)	19(Max)
Typical Gate to Drain Charge (nC)	11(Max)
Typical Gate to Source Charge (nC)	5.4(Max)
Typical Reverse Recovery Charge (nC)	320
Typical Input Capacitance @ Vds (pF)	570@25V
Typical Output Capacitance (pF)	360
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	29
Typical Rise Time (ns)	68
Typical Turn-Off Delay Time (ns)	15
Typical Turn-On Delay Time (ns)	13
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	IPAK
Pin Count	3
Standard Package Method	TO-251
Terminal Form	Through Hole
Package Height	6.22(Max)
Package Length	6.73(Max)
Package Width	2.39(Max)
PCB changed	3
