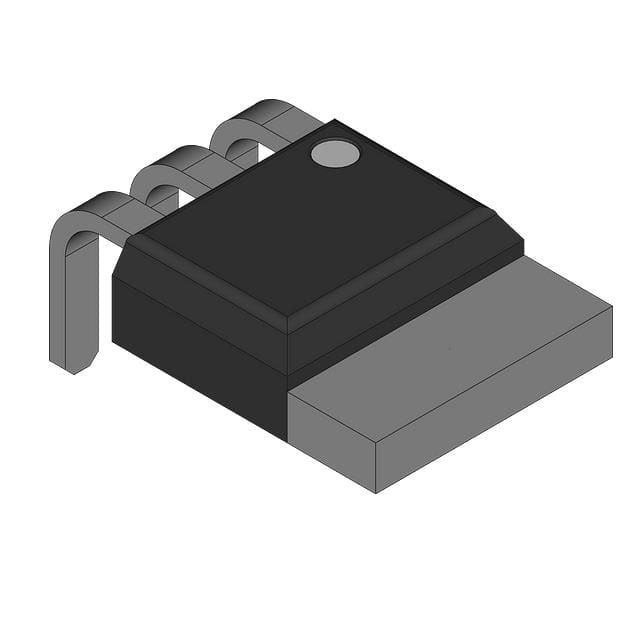

IRFU320

SKU: 47480

Manufacturer: Vishay

Trans MOSFET N-CH 400V 3.1A 3-Pin(3+Tab) IPAK

6610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	400
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	3.1
Maximum Drain Source Resistance (mOhm)	1800@10V
Typical Gate Charge @ Vgs (nC)	20(Max)@10V
Typical Gate Charge @ 10V (nC)	20(Max)
Typical Input Capacitance @ Vds (pF)	350@25V
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	13
Typical Rise Time (ns)	14
Typical Turn-Off Delay Time (ns)	30
Typical Turn-On Delay Time (ns)	10
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	IPAK
Pin Count	3
Standard Package Method	TO-251
Terminal Form	Through Hole
Package Height	6.22(Max)
Package Length	6.73(Max)
Package Width	2.39(Max)
PCB changed	3
