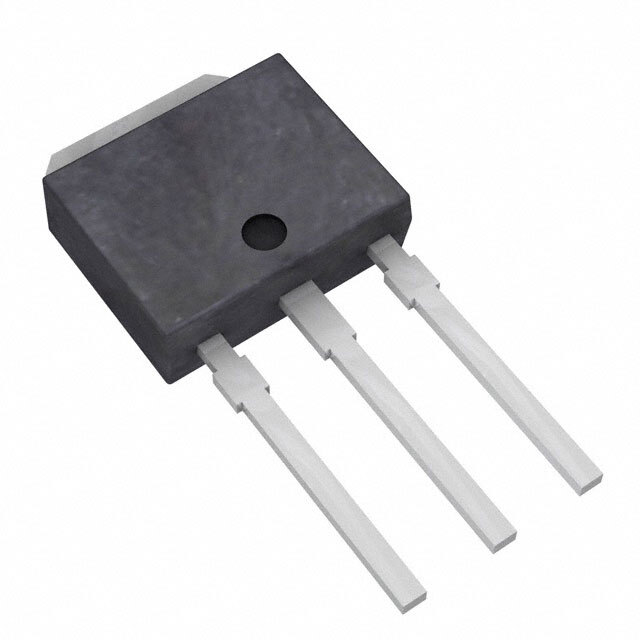

IRFU1N60A

SKU: 89736

Manufacturer: Vishay

Trans MOSFET N-CH 600V 1.4A 3-Pin(3+Tab) IPAK

12190 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	1.4
Maximum Drain Source Resistance (mOhm)	7000@10V
Typical Gate Charge @ Vgs (nC)	14(Max)@10V
Typical Gate Charge @ 10V (nC)	14(Max)
Typical Input Capacitance @ Vds (pF)	229@25V
Maximum Power Dissipation (mW)	36000
Typical Fall Time (ns)	20
Typical Rise Time (ns)	14
Typical Turn-Off Delay Time (ns)	18
Typical Turn-On Delay Time (ns)	9.8
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	IPAK
Pin Count	3
Standard Package Method	TO-251
Terminal Form	Through Hole
Package Height	6.22(Max)
Package Length	6.73(Max)
Package Width	2.38(Max)
PCB changed	3
