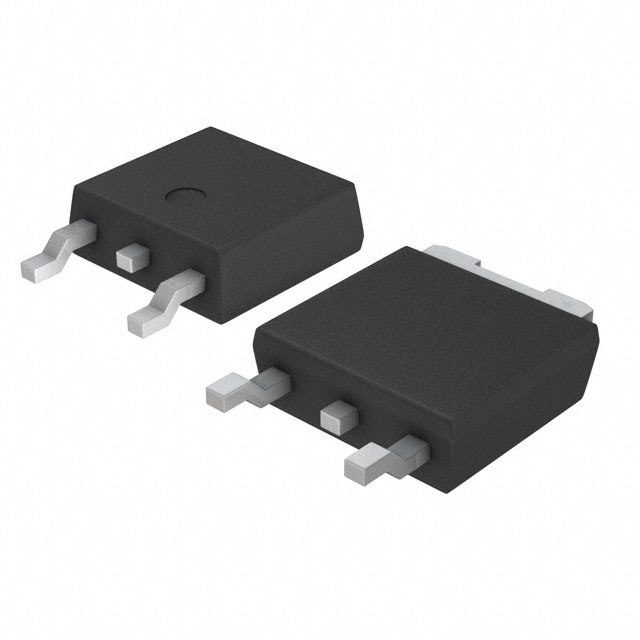

IRFR9014

SKU: 61636

Manufacturer: Vishay

Trans MOSFET P-CH 60V 5.1A 3-Pin(2+Tab) DPAK

13570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	60
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	4
Maximum Continuous Drain Current (A)	5.1
Maximum Drain Source Resistance (mOhm)	500@10V
Typical Gate Charge @ Vgs (nC)	12(Max)@10V
Typical Gate Charge @ 10V (nC)	12(Max)
Typical Gate to Drain Charge (nC)	5.1(Max)
Typical Gate to Source Charge (nC)	3.8(Max)
Typical Reverse Recovery Charge (nC)	96
Typical Input Capacitance @ Vds (pF)	270@25V
Typical Output Capacitance (pF)	170
Maximum Power Dissipation (mW)	2500
Typical Fall Time (ns)	31
Typical Rise Time (ns)	63
Typical Turn-Off Delay Time (ns)	9.6
Typical Turn-On Delay Time (ns)	11
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	DPAK
Pin Count	3
Standard Package Method	TO-252
Terminal Form	Surface Mount
Package Height	2.39(Max)
Package Length	6.73(Max)
Package Width	6.22(Max)
PCB changed	2
