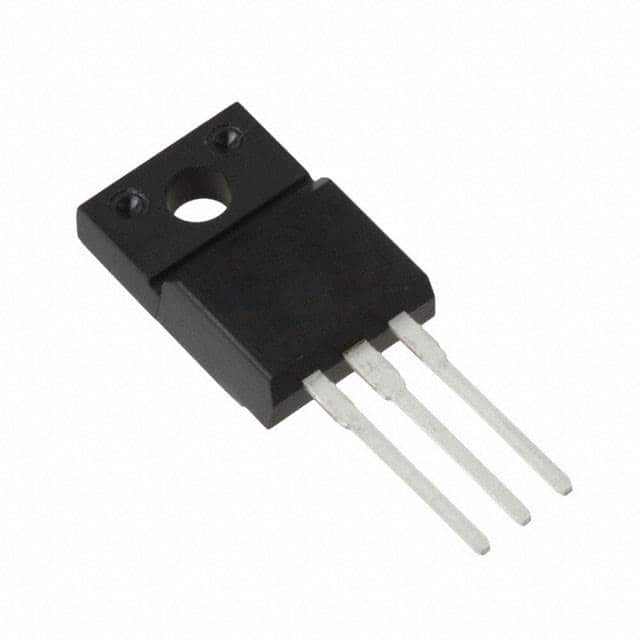

IRFI840GPBF

SKU: 82658

Manufacturer: Vishay

Trans MOSFET N-CH 500V 4.6A 3-Pin(3+Tab) TO-220FP

4610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	4.6
Maximum Drain Source Resistance (mOhm)	850@10V
Typical Gate Charge @ Vgs (nC)	67(Max)@10V
Typical Gate Charge @ 10V (nC)	67(Max)
Typical Input Capacitance @ Vds (pF)	1300@25V
Maximum Power Dissipation (mW)	40000
Typical Fall Time (ns)	21
Typical Rise Time (ns)	22
Typical Turn-Off Delay Time (ns)	55
Typical Turn-On Delay Time (ns)	14
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-220FP
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	16.12(Max)
Package Length	10.63(Max)
Package Width	4.83(Max)
PCB changed	3
Tab	Tab
