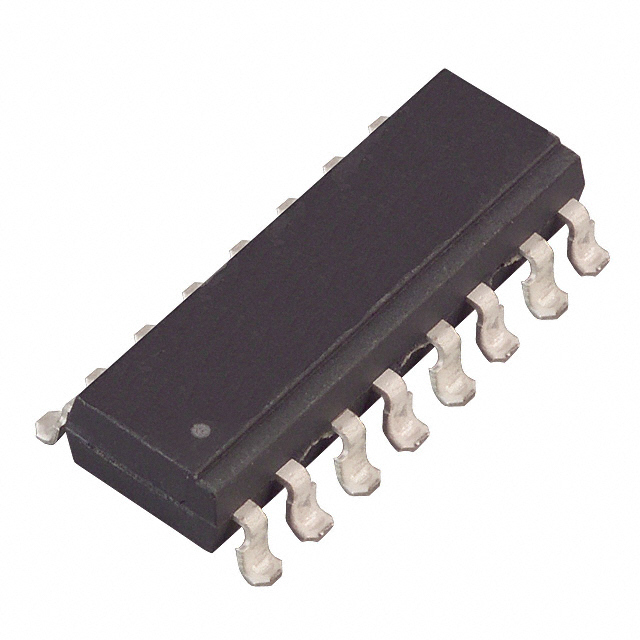

ILQ620-X009

SKU: 68599

Manufacturer: Vishay

Optocoupler AC-IN 4-CH Transistor DC-OUT 16-Pin PDIP SMD Tube

2830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	AC
Output Device	Transistor
Number of Channels per Chip	4
Minimum Isolation Voltage (Vrms)	5300
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.3
Collector-Emitter Voltage-Max (V)	70
Maximum Current Transfer Ratio (%)	600
Standard	CSA
Maximum Collector Current (mA)	100
Maximum Collector-Emitter Saturation Voltage (mV)	400
Maximum Power Dissipation (mW)	500
Minimum Forward Voltage (V)	1
Typical Forward Voltage (V)	1.15
Maximum Forward Current (mA)	60
Packing Method	Tube
Minimum Current Transfer Ratio (%)	50
Current Transfer Ratio Test Current (mA)	5
Typical Rise Time (us)	2.8
Typical Fall Time (us)	11
Standard Package Method	DIP
Pin Count	16
Original Package	PDIP SMD
Terminal Form	Surface Mount
Package Height	3.81(Max)
Package Length	20.07(Max)
Package Width	6.81(Max)
PCB changed	16
