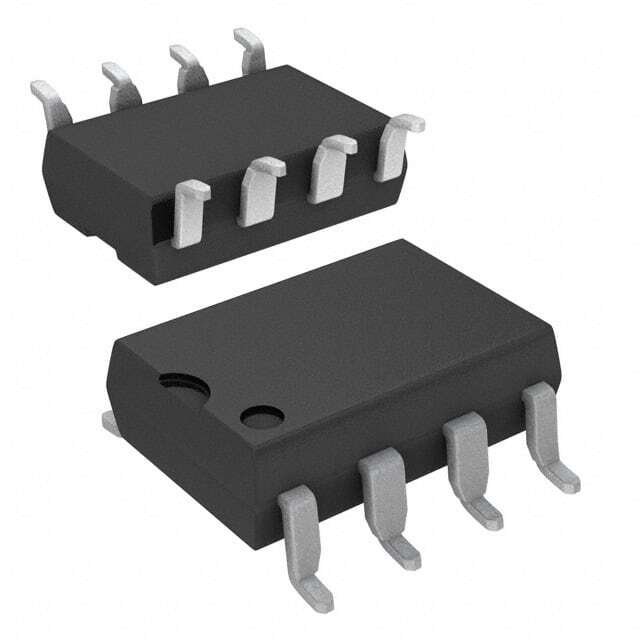

IL300-DEFG-X017

SKU: 122385

Manufacturer: Vishay

DC-IN 1-CH Linear Photovoltaic DC-OUT 8-Pin PDIP-8A SMD Tube

3670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Linear Photovoltaic
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5300
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.5
Standard	BSI
Maximum Power Dissipation (mW)	210
Typical Forward Voltage (V)	1.25
Maximum Reverse Voltage (V)	5
Maximum Forward Current (mA)	60
Packing Method	Tube
Typical Rise Time (us)	1.75
Typical Fall Time (us)	1.75
Pin Count	8
Original Package	PDIP-8A SMD
Terminal Form	Surface Mount
Package Height	3.81(Max)
Package Length	10.16(Max)
Package Width	6.6(Max)
