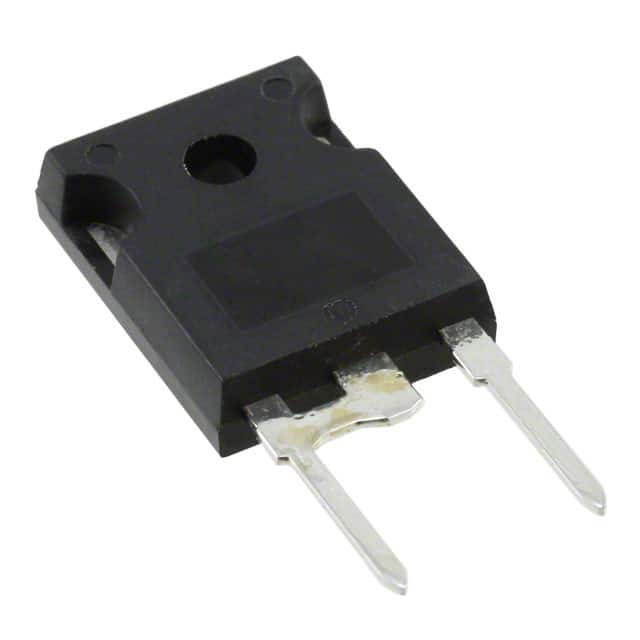

HFA08PB60PBF

SKU: 23314

Manufacturer: Vishay

Rectifier Diode Switching 8A 55ns 2-Pin(2+Tab) TO-247AC Modified Tube

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	600
Configuration	Single
Maximum Continuous Forward Current (A)	8
Peak Non-Repetitive Surge Current (A)	60
Peak Forward Voltage (V)	2.1@16A
Peak Reverse Current (uA)	5
Maximum Power Dissipation (mW)	36000
Peak Reverse Recovery Time (ns)	55
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247AC Modified
Pin Count	2
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	20.7(Max)
Package Length	15.9(Max)
Package Width	5.3(Max)
PCB changed	2
Tab	Tab
