GLL4754-E3/96

SKU: 157836

Manufacturer: Vishay

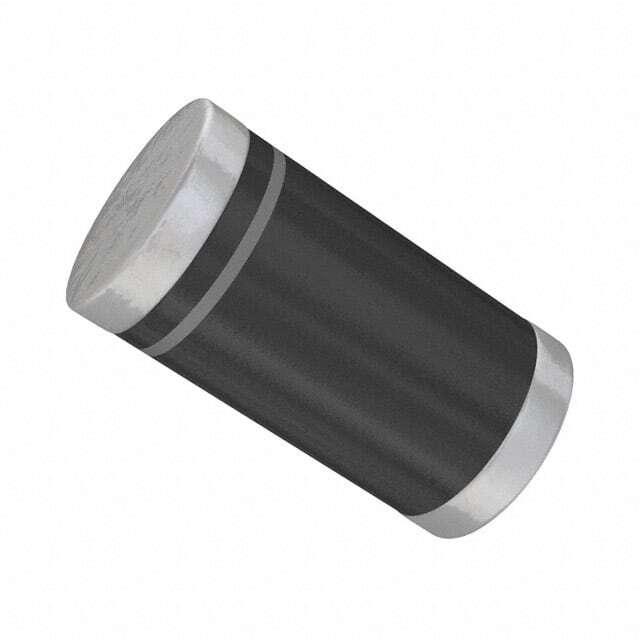

Zener Diode Single 39V 10% 60Ohm 1000mW 2-Pin MELF T/R

1380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	39
Zener Voltage Tolerance	10%
Maximum Power Dissipation (mW)	1000
Test Current (mA)	6.5
Maximum Reverse Leakage Current (uA)	5
Maximum Regulator Current (mA)	115
Maximum Zener Impedance (Ohm)	60
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	MELF
Pin Count	2
Standard Package Method	MELF
Diameter	2.67(Max)
Terminal Form	Surface Mount
Package Length	5.2(Max)
