GBU6M-E3/45

SKU: 115233

Manufacturer: Vishay

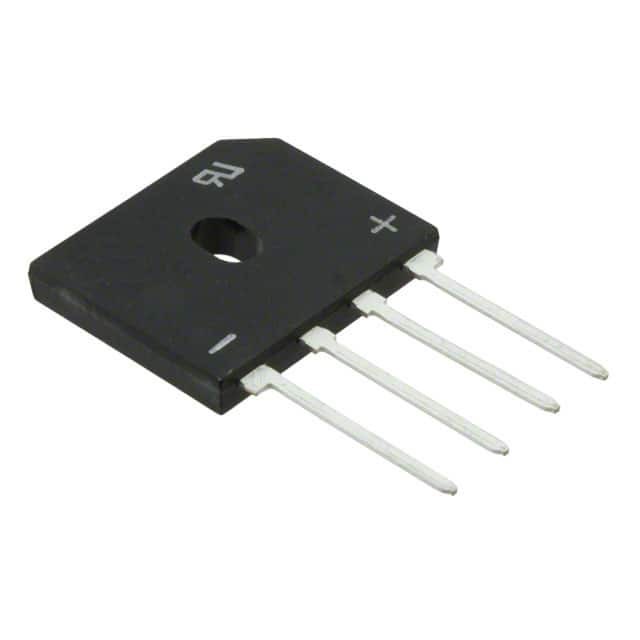

Rectifier Bridge Diode Single 1KV 6A 4-Pin Case GBU Tube

3610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1000
Peak Average Forward Current (A)	6
Peak RMS Reverse Voltage (V)	700
Peak Non-Repetitive Forward Surge Current (A)	175
Peak Forward Voltage (V)	1
Peak Reverse Current (uA)	5
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Supplier Temperature Grade	Commercial
Original Package	Case GBU
Pin Count	4
Standard Package Method	Case GBU
Terminal Form	Through Hole
Package Height	18.8(Max)
Package Length	22.3(Max)
Package Width	3.56(Max)
PCB changed	4
