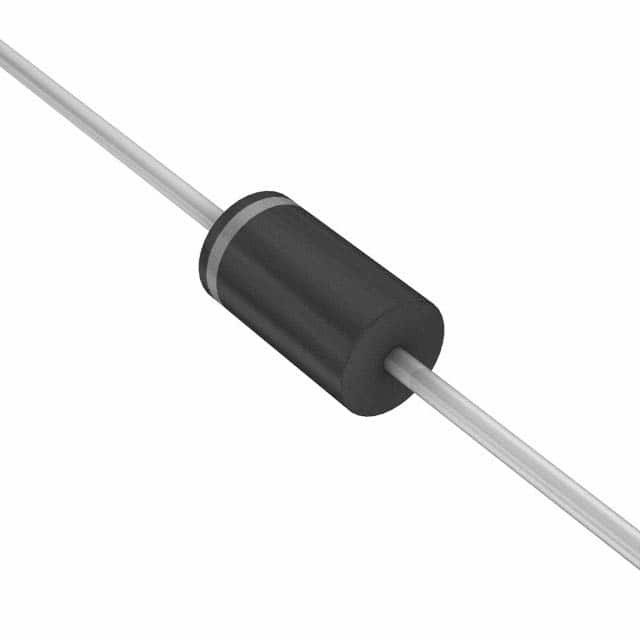

EGP30G-E3/73

SKU: 61262

Manufacturer: Vishay

Rectifier Diode Switching 400V 3A 50ns 2-Pin Case GP-20 Ammo

2030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Switching Diode
Maximum DC Reverse Voltage (V)	400
Configuration	Single
Peak Reverse Repetitive Voltage (V)	400
Maximum Continuous Forward Current (A)	3@Ta=55C
Peak Non-Repetitive Surge Current (A)	125
Peak Forward Voltage (V)	1.25
Peak Reverse Current (uA)	5
Peak Reverse Recovery Time (ns)	50
Operating Temperature-Min	-65
Operating Temperature-Max	150
Packing Method	Ammo
Supplier Temperature Grade	Commercial
Original Package	Case GP-20
Pin Count	2
Standard Package Method	DO-201
Diameter	5.3(Max)
Terminal Form	Through Hole
Package Length	9.5(Max)
PCB changed	2
