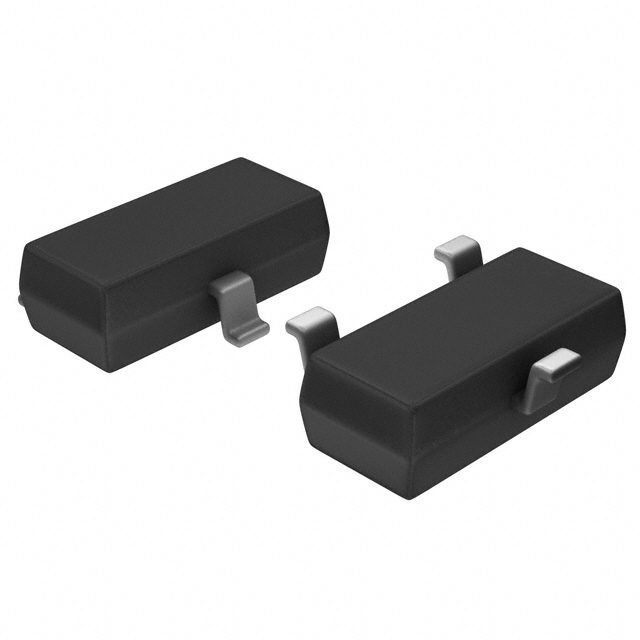

DZ23C12-HE3-08

SKU: 61226

Manufacturer: Vishay

Zener Diode Dual Common Cathode 12V 5% 7Ohm 300mW Automotive 3-Pin SOT-23 T/R

4060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	Yes
PPAP	Unknown
Type	Voltage Regulator
Configuration	Dual Common Cathode
Nominal Zener Voltage (V)	12
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	300
Test Current (mA)	5
Maximum Zener Impedance (Ohm)	7
Maximum Power Dissipation @ 25C (mW)	300
Operating Temperature-Min	-55
Operating Temperature-Max	150
Typical Voltage Temperature Coefficient	0.075%/°C
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3.1(Max)
Package Width	1.43(Max)
PCB changed	3
