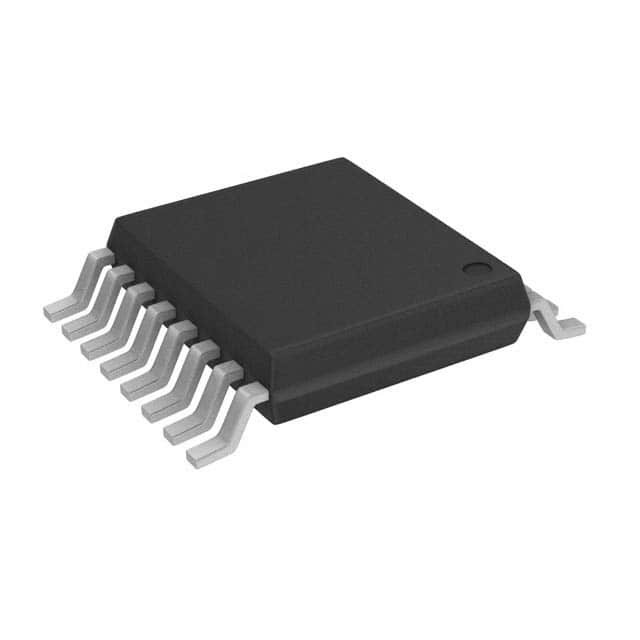

DG9052DQ-T1-E3

SKU: 68104

Manufacturer: Vishay

Analog Multiplexer Dual 4:1 Automotive 16-Pin TSSOP T/R

2390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Unknown
PPAP	Unknown
Type	Analog Multiplexer
Number of Channels per Chip	2
Number of Inputs per Chip	8
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Maximum Propagation Delay Bus to Bus (ns)	35@12V
Maximum Turn-On Time (ns)	90(Typ)@2.7V
Maximum Turn-Off Time (ns)	30(Typ)@2.7V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±2.7
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±6
Maximum Supply Current (mA)	0.001@5V
Maximum High Level Output Current (mA)	100
Maximum On Resistance (Ohm)	120@4.5V
Maximum On Resistance Range (Ohm)	100 to 150
Propagation Delay Test Condition (pF)	35
Power Supply Type	Single
Maximum Power Dissipation (mW)	925
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.92
Package Length	5.08
Package Width	4.4
PCB changed	16
