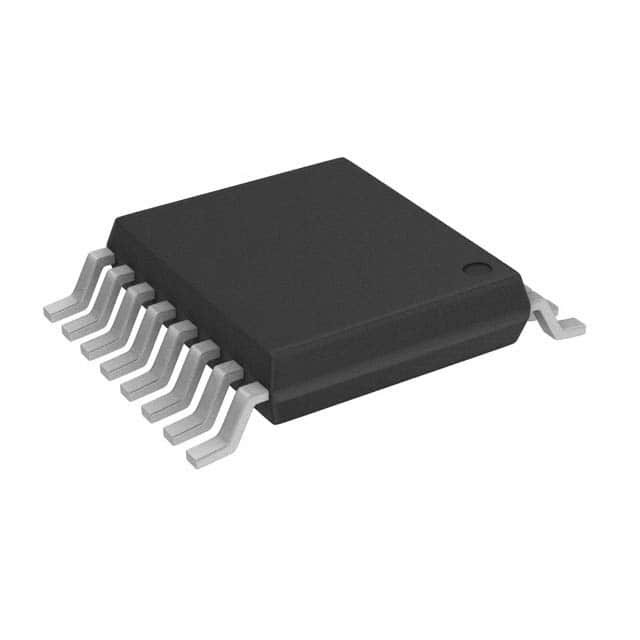

DG612EEQ-T1-GE4

SKU: 122248

Manufacturer: Vishay

Analog Switch Quad SPST 16-Pin TSSOP T/R

3420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Quad SPST
Switch Architecture	SPST
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	115@3V
Maximum Turn-Off Time (ns)	58@3V
Maximum Frequency (25°C) @ Vcc (MHz)	830(Typ)@3V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±5
Typical Supply Current (mA)	±0.000001@±5V
Maximum Supply Current (mA)	±0.0001@±5V
Maximum High Level Output Current (mA)	100
Maximum On Resistance (Ohm)	420@3V
Maximum On Resistance Range (Ohm)	400 to 1000
Power Supply Type	Single
Maximum Power Dissipation (mW)	450
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	16
Terminal Form	Surface Mount
Package Height	1
Package Length	5
Package Width	4.4
