DG419BDY

SKU: 82146

Manufacturer: Vishay

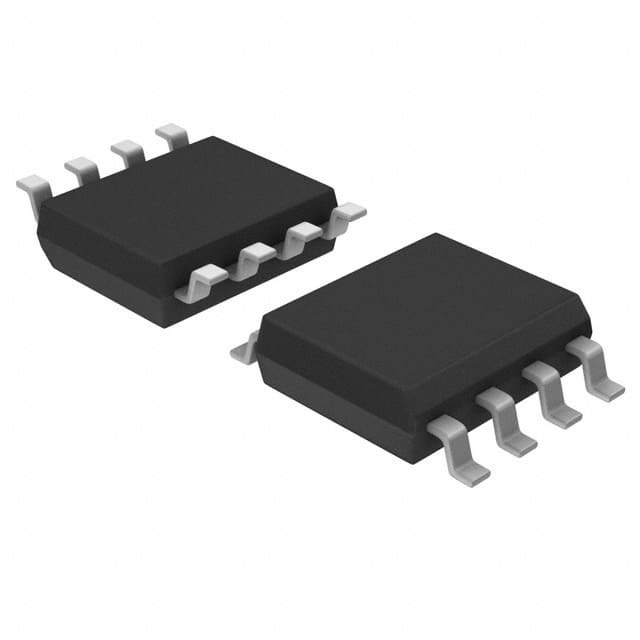

Analog Switch Single SPDT 8-Pin SOIC N

33120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Single SPDT
Switch Architecture	SPDT
Number of Channels per Chip	1
Number of Inputs per Chip	1
Number of Outputs per Chip	2
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Propagation Delay Bus to Bus (ns)	87@±15V
Maximum Turn-On Time (ns)	125@12V
Maximum Turn-Off Time (ns)	80@±15V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	13
Typical Single Supply Voltage (V)	24
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±7
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±22
Typical Supply Current (mA)	±0.000001@±16.5V
Maximum Supply Current (mA)	±0.001@±16.5V
Maximum High Level Output Current (mA)	30
Maximum On Resistance (Ohm)	35@10.8V
Maximum On Resistance Range (Ohm)	35 to 45
Propagation Delay Test Condition (pF)	35
Power Supply Type	Single
Maximum Power Dissipation (mW)	400
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	SOIC N
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
