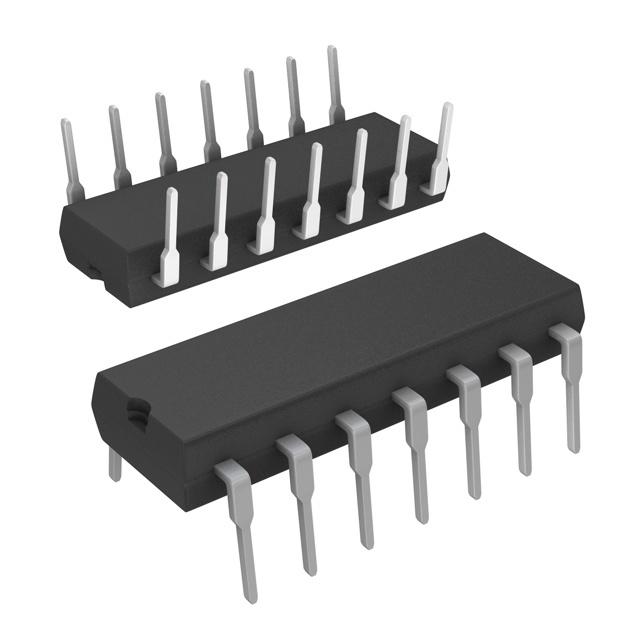

DG306AAK/883

SKU: 150605

Manufacturer: Vishay

Analog Switch Dual DPST 14-Pin CDIP

2160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c
Part Status	Active
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Dual DPST
Switch Architecture	DPST
Number of Channels per Chip	2
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	250@±15V
Maximum Turn-Off Time (ns)	150@±15V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	13
Typical Single Supply Voltage (V)	24
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±7
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±22
Typical Supply Current (mA)	±0.000001@±15V
Maximum Supply Current (mA)	±0.01@±15V
Maximum High Level Output Current (mA)	100
Maximum On Resistance (Ohm)	50@±15V
Maximum On Resistance Range (Ohm)	45 to 60
Power Supply Type	Single
Maximum Power Dissipation (mW)	825
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Original Package	CDIP
Pin Count	14
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.94(Max)
Package Length	19.56(Max)
Package Width	7.62(Max)
PCB changed	14
