DG271BCJ

SKU: 51633

Manufacturer: Vishay

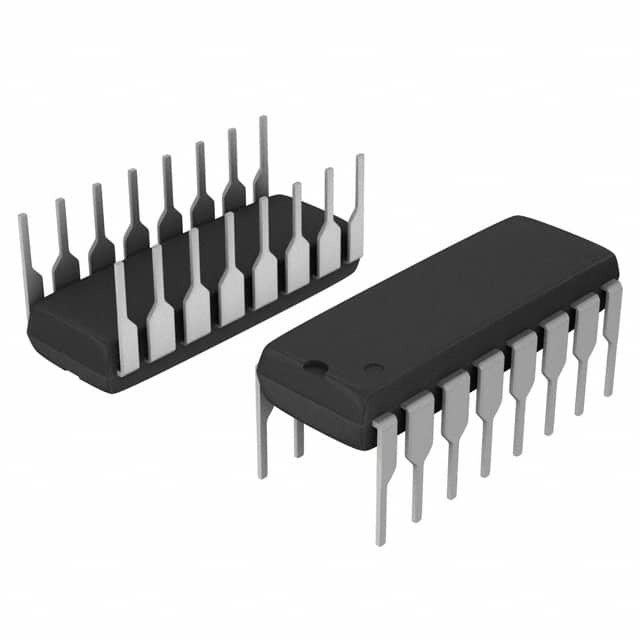

Analog Switch Quad SPST 16-Pin PDIP

2390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Quad SPST
Switch Architecture	SPST
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	65@±15V
Maximum Turn-Off Time (ns)	65@±15V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	13
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±7
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±22
Typical Supply Current (mA)	5.5@15V/-3.4@-15V
Maximum Supply Current (mA)	7.5@15V/-6@-15V
Maximum On Resistance (Ohm)	50@±15V
Maximum On Resistance Range (Ohm)	45 to 60
Power Supply Type	Single
Maximum Power Dissipation (mW)	470
Operating Temperature-Min	0
Operating Temperature-Max	70
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.81(Max)
Package Length	21.33(Max)
Package Width	7.11(Max)
PCB changed	16
