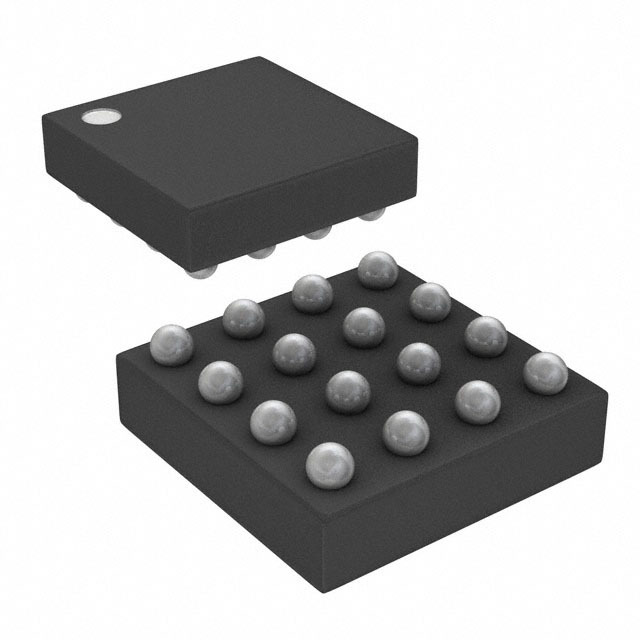

DG2502DB-T2-GE1

SKU: 46948

Manufacturer: Vishay

Analog Switch Quad SPST 16-Pin WCSP T/R

3590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Quad SPST
Switch Architecture	SPST
Number of Channels per Chip	4
Number of Inputs per Chip	4
Number of Outputs per Chip	4
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	220@3V
Maximum Turn-Off Time (ns)	100@3V
Maximum Frequency (25°C) @ Vcc (MHz)	510(Typ)@3V
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Typical Supply Current (mA)	0.0046@5V
Maximum Supply Current (mA)	0.03@5V@-40C to 85C
Maximum On Resistance (Ohm)	200@3V
Maximum On Resistance Range (Ohm)	150 to 250
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	WCSP
Pin Count	16
Terminal Form	Surface Mount
Package Length	1.44
Package Width	1.44
