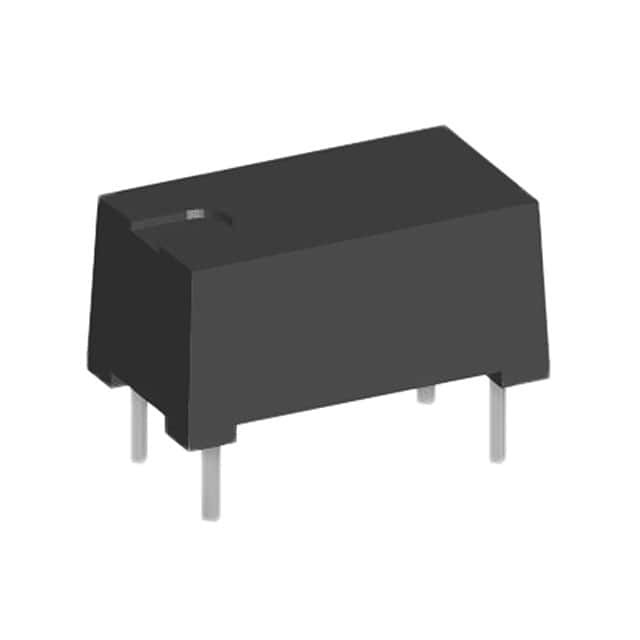

CNY66

SKU: 30203

Manufacturer: Vishay

Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP

1150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	8200
Operating Temperature-Min	-55
Operating Temperature-Max	85
Maximum Forward Voltage (V)	1.6
Collector-Emitter Voltage-Max (V)	32
Maximum Current Transfer Ratio (%)	300
Standard	DIN
Maximum Collector Current (mA)	50
Maximum Collector-Emitter Saturation Voltage (mV)	300
Maximum Power Dissipation (mW)	250
Typical Forward Voltage (V)	1.25
Maximum Reverse Voltage (V)	5
Maximum Forward Current (mA)	75
Minimum Current Transfer Ratio (%)	50
Current Transfer Ratio Test Current (mA)	10
Typical Rise Time (us)	2.4
Typical Fall Time (us)	2.7
Standard Package Method	DIP
Pin Count	4
Original Package	PDIP
Terminal Form	Through Hole
Package Height	6.1
Package Length	20.4
Package Width	9.6
PCB changed	4
