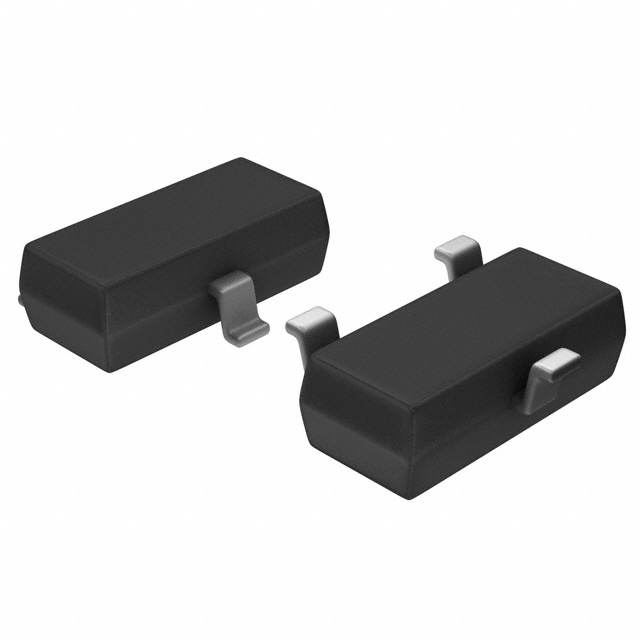

BZX84B56-E3-08

SKU: 39499

Manufacturer: Vishay

Zener Diode Single 56V 2% 200Ohm 300mW 3-Pin SOT-23 T/R

2800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	56
Zener Voltage Tolerance	2%
Maximum Power Dissipation (mW)	300
Test Current (mA)	2
Maximum Reverse Leakage Current (uA)	0.05
Maximum Zener Impedance (Ohm)	200
Maximum Power Dissipation @ 25C (mW)	300
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Commercial
Typical Voltage Temperature Coefficient	0.1%/°C
Maximum Zener Voltage (V)	57.1
Minimum Zener Voltage (V)	54.9
Packing Method	Tape and Reel
Product Weight (g)	0.0088
Original Package	SOT-23
Pin Count	3
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3.1(Max)
Package Width	1.43(Max)
PCB changed	3
