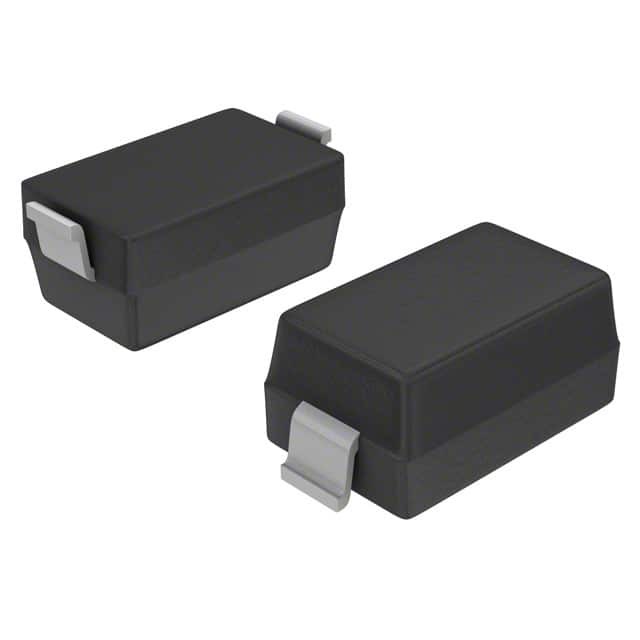

BZT52C9V1-HE3-08

SKU: 53759

Manufacturer: Vishay

Zener Diode Single 9.1V 6% 10Ohm 500mW Automotive 2-Pin SOD-123 T/R

3230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	9.1
Zener Voltage Tolerance	6%
Maximum Power Dissipation (mW)	500
Test Current (mA)	5
Maximum Reverse Leakage Current (uA)	0.1
Maximum Regulator Current (mA)	36
Maximum Zener Impedance (Ohm)	10
Maximum Power Dissipation @ 25C (mW)	500
Operating Temperature-Min	-55
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Maximum Zener Voltage (V)	9.6
Typical Voltage Temperature Coefficient	0.065%/°C
Minimum Zener Voltage (V)	8.5
Packing Method	Tape and Reel
Product Weight (g)	0.0103
Pin Count	2
Standard Package Method	SOD
Original Package	SOD-123
Terminal Form	Surface Mount
Package Height	1.25(Max)
Package Length	2.85(Max)
Package Width	1.7(Max)
PCB changed	2
