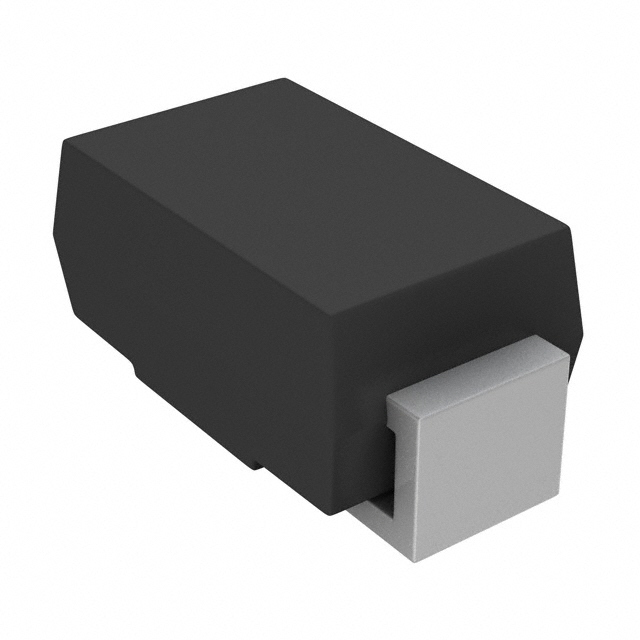

BZG05C6V2-HE3-TR

SKU: 152688

Manufacturer: Vishay

Zener Diode Single 6.2V 6% 4Ohm 3000mW Automotive 2-Pin SMA T/R

1540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	6.2
Zener Voltage Tolerance	6%
Maximum Power Dissipation (mW)	3000
Test Current (mA)	35
Maximum Reverse Leakage Current (uA)	1
Maximum Zener Impedance (Ohm)	4
Maximum Power Dissipation @ 25C (mW)	1250
Operating Temperature-Min	-65
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Typical Voltage Temperature Coefficient	0.0325%/K
Packing Method	Tape and Reel
Original Package	SMA
Pin Count	2
Standard Package Method	DO-214-AC
Terminal Form	Surface Mount
Package Height	2.09(Max)
Package Length	4.5(Max)
Package Width	2.79(Max)
PCB changed	2
