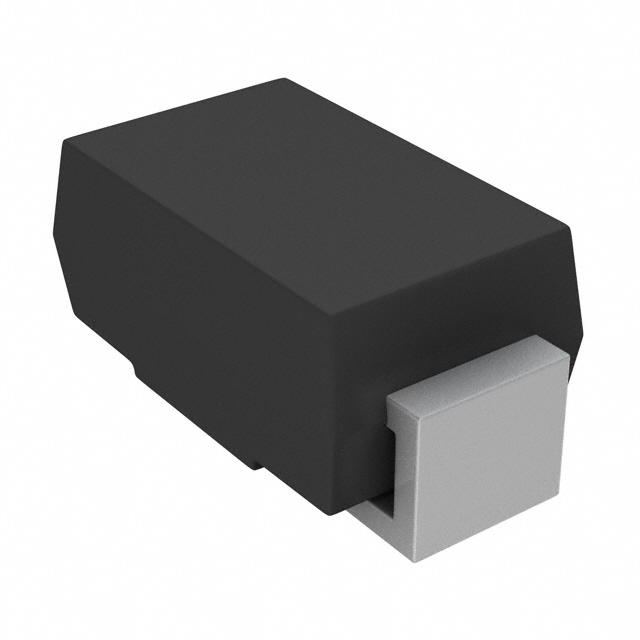

BZG05C36-HE3-TR

SKU: 44360

Manufacturer: Vishay

Zener Diode Single 36V 6% 40Ohm 3000mW Automotive 2-Pin DO-214AC T/R

3960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Unknown
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	36
Zener Voltage Tolerance	6%
Maximum Power Dissipation (mW)	3000
Test Current (mA)	8
Maximum Reverse Leakage Current (uA)	0.5
Maximum Zener Impedance (Ohm)	40
Maximum Power Dissipation @ 25C (mW)	1250
Operating Temperature-Min	-65
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Typical Voltage Temperature Coefficient	0.09%/K
Packing Method	Tape and Reel
Original Package	DO-214AC
Pin Count	2
Terminal Form	Surface Mount
Package Height	2.3(Max) - 0.1
Package Length	4.5(Max)
Package Width	2.8(Max)
