BU25H08-E3/A

SKU: 37261

Manufacturer: Vishay

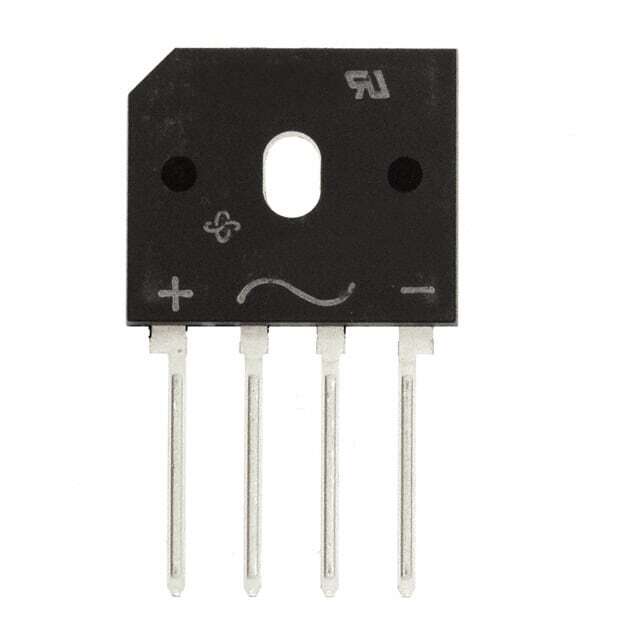

Rectifier Bridge Diode Single 800V 3.5A 4-Pin(4+Tab) Case BU Tray

1680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

ECCN (US)	EAR99
Automotive	No
PPAP	No
Bridge Type	Single Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	800
Peak Average Forward Current (A)	3.5
Peak Non-Repetitive Forward Surge Current (A)	300
Peak Forward Voltage (V)	1.05@12.5A
Peak Reverse Current (uA)	5
Operating Temperature-Min	-55
Operating Temperature-Max	175
Packing Method	Tray
Supplier Temperature Grade	Commercial
Original Package	Case BU
Pin Count	4
Terminal Form	Through Hole
Package Height	18.8(Max)
Package Length	22.3(Max)
Package Width	4.1(Max)
PCB changed	4
