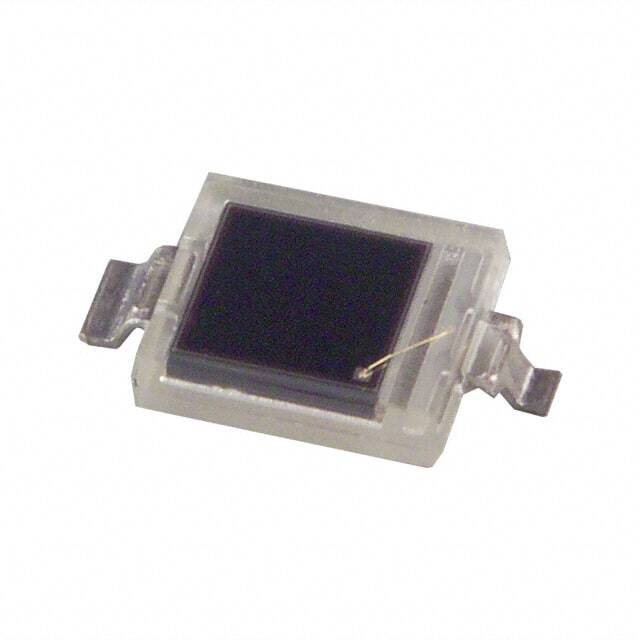

BPW34S

SKU: 39380

Manufacturer: Vishay

Photodiode PIN Chip 900nm 2-Pin Tube

89570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.70
Automotive	No
PPAP	No
Type	Chip
Photodiode Type	PIN
Photodiode Body Material	Si
Polarity	Forward
Peak Wavelength (nm)	900
Maximum Rise Time (ns)	100(Typ)
Maximum Fall Time (ns)	100(Typ)
Maximum Light Current (uA)	75(Typ)
Maximum Dark Current (nA)	30
Maximum Reverse Voltage (V)	60
Maximum Power Dissipation (mW)	215
Operating Temperature-Min	-40
Operating Temperature-Max	100
Packing Method	Tube
Pin Count	2
Terminal Form	Through Hole
Package Height	2
Package Length	4.5
Package Width	4.3
