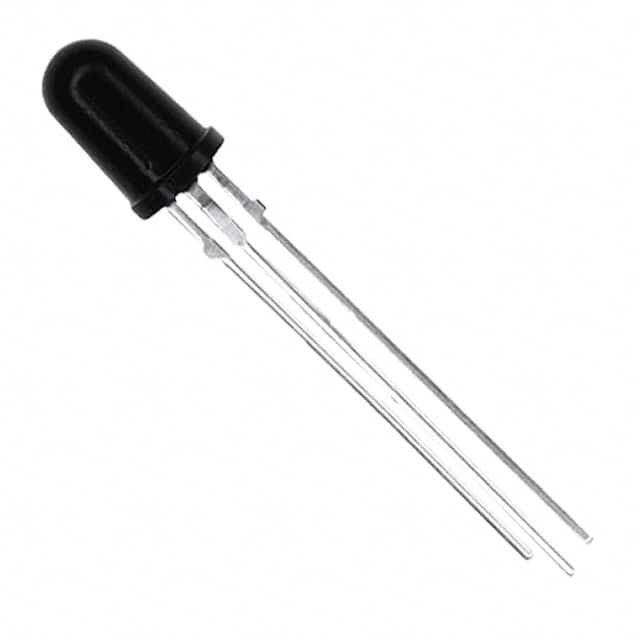

BPV11F

SKU: 25154

Manufacturer: Vishay

Phototransistor IR Chip Silicon 930nm 2-Pin T-1 3/4

2330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Type	IR Chip
Phototransistor Type	Phototransistor
Lens Shape Type	Domed
Body Material	Silicon
Number of Channels per Chip	1
Polarity	NPN
Half Intensity Angle Degrees (°)	30
Viewing Orientation	Top View
Peak Wavelength (nm)	930
Cut-Off Filter	Visible Cut-off
Maximum Light Current (uA)	9000(Typ)
Maximum Collector Current (mA)	50
Maximum Dark Current (nA)	50
Collector-Emitter Voltage-Max (V)	70
Maximum Collector-Emitter Saturation Voltage (V)	0.3
Maximum Power Dissipation (mW)	150
Fabrication Technology	NPN Transistor
Operating Temperature-Max	100
Standard Package Method	T-1 3/4
Original Package	T-1 3/4
Pin Count	2
Diameter	5.75
Terminal Form	Through Hole
Package Height	8.6
PCB changed	2
