BAV101-GS08

SKU: 109944

Manufacturer: Vishay

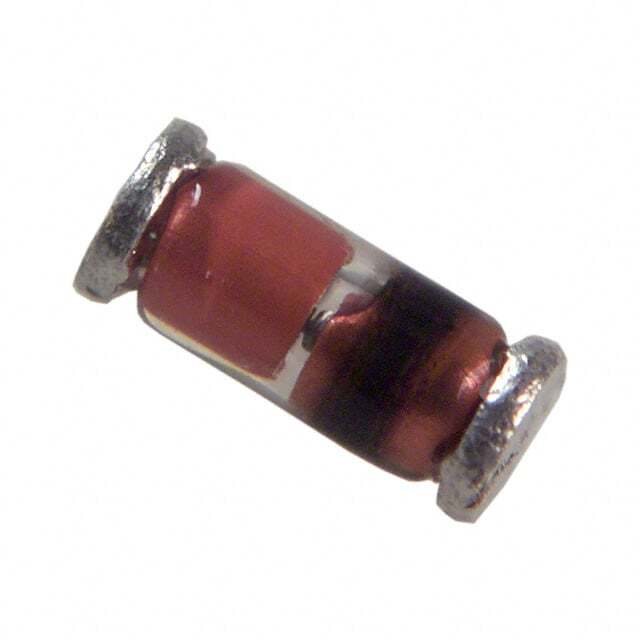

Diode Small Signal Switching 120V 0.25A Automotive 2-Pin Mini-MELF SOD-80 T/R

15400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	Yes
PPAP	Unknown
Type	Small Signal Switching Diode
Maximum DC Reverse Voltage (V)	100
Configuration	Single
Peak Reverse Repetitive Voltage (V)	120
Maximum Continuous Forward Current (A)	0.25
Peak Non-Repetitive Surge Current (A)	1
Peak Forward Voltage (V)	1@0.1A
Peak Reverse Current (uA)	0.1
Maximum Power Dissipation (mW)	500
Peak Reverse Recovery Time (ns)	50
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Tape and Reel
Supplier Temperature Grade	Automotive
Original Package	Mini-MELF SOD-80
Pin Count	2
Standard Package Method	SOD
Diameter	1.6(Max)
Terminal Form	Surface Mount
Package Length	3.7(Max)
