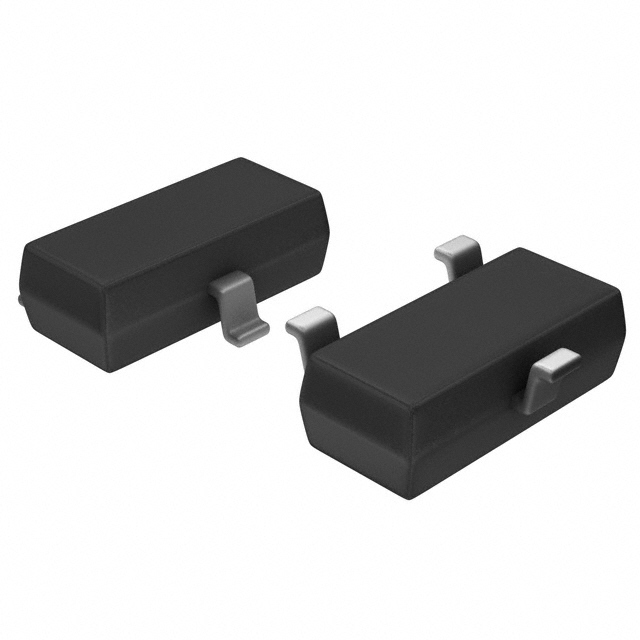

BAS40-00-V-GS08

SKU: 44335

Manufacturer: Vishay

Rectifier Diode Small Signal Schottky 40V 0.2A 5ns Automotive 3-Pin SOT-23 T/R

1250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.10.00.80
Automotive	Yes
PPAP	Unknown
Type	Small Signal Schottky Diode
Maximum DC Reverse Voltage (V)	40
Configuration	Single
Peak Reverse Repetitive Voltage (V)	40
Maximum Continuous Forward Current (A)	0.2
Peak Non-Repetitive Surge Current (A)	0.6
Peak Forward Voltage (V)	1@0.4A
Peak Reverse Current (uA)	0.1@30V
Maximum Power Dissipation (mW)	200
Peak Reverse Recovery Time (ns)	5
Operating Temperature-Min	-65
Operating Temperature-Max	125
Packing Method	Tape and Reel
Supplier Temperature Grade	Commercial
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3.1(Max)
Package Width	1.43(Max)
PCB changed	3
