70HF40 Vishay

70HF40

SKU: 86407

Manufacturer: Vishay

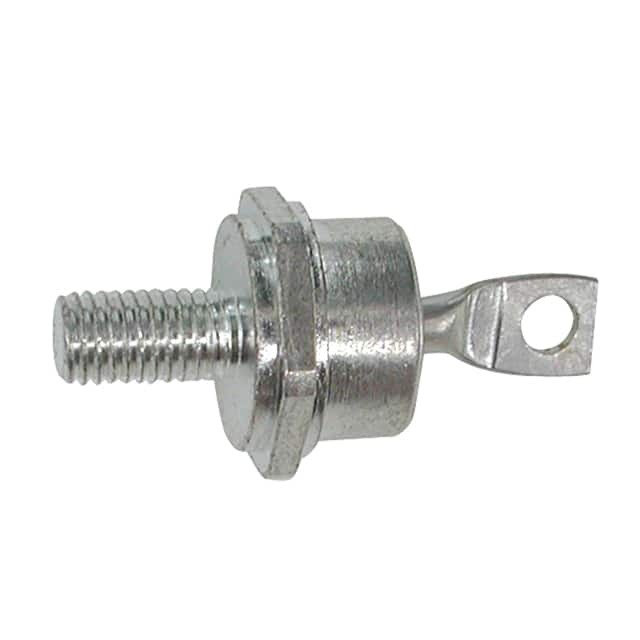

Rectifier Diode Switching 400V 70A 2-Pin DO-5

Request Free Samples

3130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	400
Maximum Continuous Forward Current (A)	70
Peak Non-Repetitive Surge Current (A)	1250
Peak Forward Voltage (V)	1.35@220A
Peak Reverse Current (uA)	15000
Operating Temperature-Min	-65
Operating Temperature-Max	180
Original Package	DO-5
Pin Count	2
Standard Package Method	DO-203-AB
Terminal Form	Stud
Package Height	22.9(Max)
Package Length	20.08
Package Width	17.4
PCB changed	2
