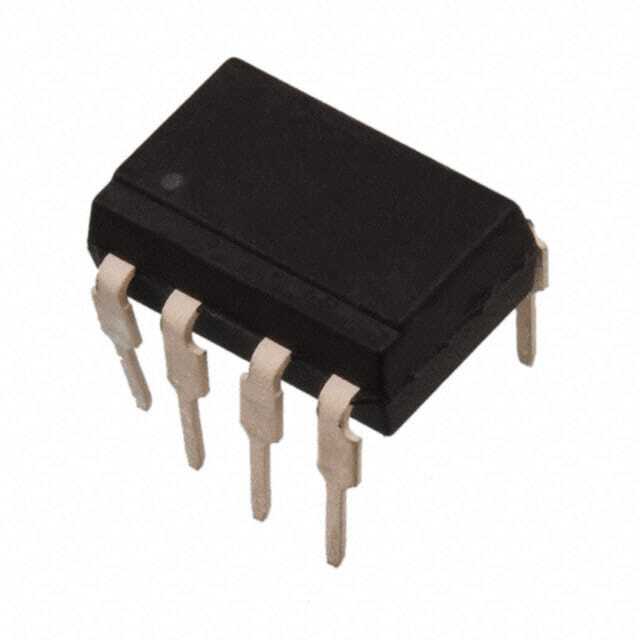

6N136

SKU: 52830

Manufacturer: Vishay

Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 8-Pin PDIP

87860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	No
PPAP	No
Output Type	DC
Input Type	DC
Output Device	Transistor With Base
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	5300
Operating Temperature-Min	-55
Operating Temperature-Max	100
Maximum Forward Voltage (V)	1.9
Maximum Current Transfer Ratio (%)	35(Typ)
Standard	CSA
Maximum Collector Current (mA)	8
Maximum Power Dissipation (mW)	100
Maximum Reverse Voltage (V)	5
Typical Forward Voltage (V)	1.6
Maximum Forward Current (mA)	25
Minimum Current Transfer Ratio (%)	19
Current Transfer Ratio Test Current (mA)	16
Maximum Data Rate	1MBd
Standard Package Method	DIP
Pin Count	8
Original Package	PDIP
Terminal Form	Through Hole
Package Height	3.81(Max)
Package Length	9.91(Max)
Package Width	6.81(Max)
PCB changed	8
