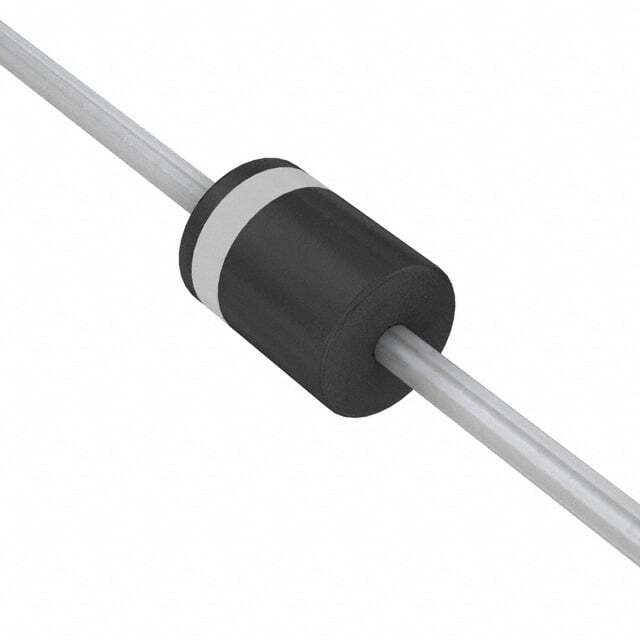

5KP8.0A-E3/54

SKU: 38573

Manufacturer: Vishay

TVS Diode Single Uni-Dir 8V 5KW 2-Pin Case P-600 T/R

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	8.89
Maximum Clamping Voltage (V)	13.6
Maximum Reverse Stand-Off Voltage (V)	8
Maximum Forward Voltage (V)	3.5
Peak Forward Surge Current (A)	600
Maximum Peak Pulse Current (A)	368
Maximum Reverse Leakage Current (uA)	150
Test Current (mA)	5
Peak Pulse Power Dissipation (W)	5000
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Commercial
Maximum Power Dissipation (mW)	8000
Product Weight (g)	2.776
Packing Method	Tape and Reel
Original Package	Case P-600
Pin Count	2
Standard Package Method	Case P-600
Diameter	9.1(Max)
Terminal Form	Through Hole
Package Length	9.1(Max)
PCB changed	2
