594D156X0050R2T

SKU: 114678

Manufacturer: Vishay

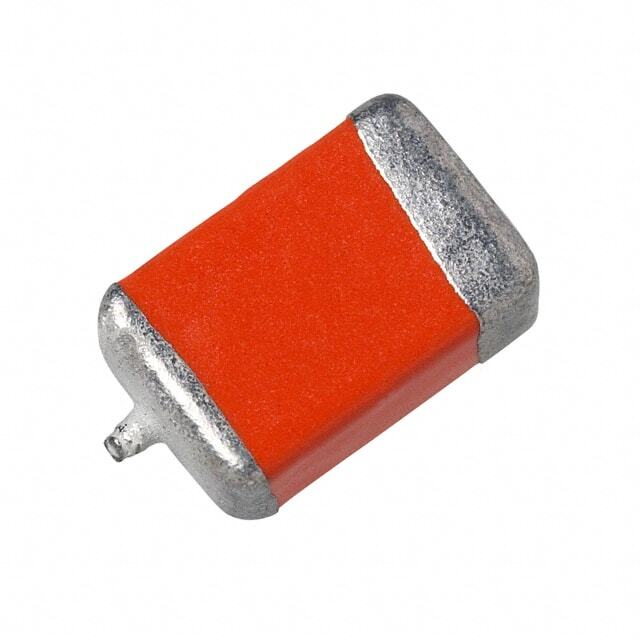

Cap Tant Solid 15uF 50V R CASE 20% (7.2 X 6 X 3.5mm) Pad SMD 0.35 Ohm 125°C T/R

2490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.21.00.40
Automotive	No
PPAP	No
Type	Solid
Capacitance Value	15uF
Tolerance	20%
Voltage	50VDC
ESR (Ohm)	0.35
Equivalent Series Resistance Type	Low
IR (mA)	850
IL (uA)	7.5
Polarity	Polar
Dissipation Factor (%)	6
Special Features	Large Capacitance
Fail Safe with Built-in Fuse	No
High Shock and Vibrating	No
Case Code	R
Case Style	Conformal Coated
Construction	Flat
Terminal Form	Surface Mount
Terminal Form	Pad
Number of Terminals	2
Size (mm)	7.2 X 6 X 3.5
Temperature Range @ Derated Voltage (°C)	85 to 125
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	7.2(Max)
Depth (mm)	6
