562R5GAD47

SKU: 10079

Manufacturer: Vishay

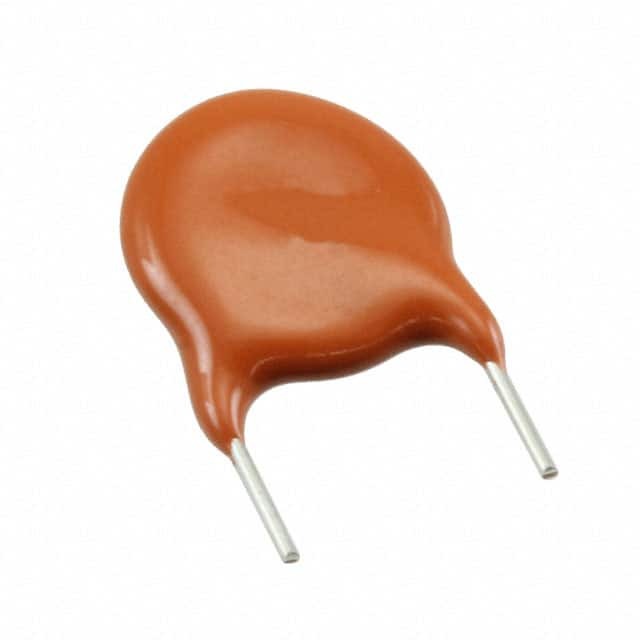

Ceramic CapacitorsSingle 0.0047uF 1000V Z5U 20% (9.4 X 4mm) Radial Disc 6.4mm 105°C Bulk

2620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8532.24.00.60
Automotive	No
PPAP	No
Type	Ceramic Disc
Capacitance Value	0.0047uF
Tolerance	20%
Voltage	1000VDC
Minimum Insulation Resistance (Ohm)	20G
Dielectric	Z5U
Special Features	Low Losses
Microwave Application	No
Construction	Disc
Terminal Form	Radial
Terminal Pitch (mm)	6.4
Dissipation Factor (%)	2.5
Size (mm)	9.4 X 4
Operating Temperature-Min	-55
Operating Temperature-Max	105
Packing Method	Bulk
Lead Diameter (mm)	0.64
Product Diameter (mm)	9.4(Max)
Depth (mm)	4(Max)
Seated Plane Height (mm)	12.4(Max)
