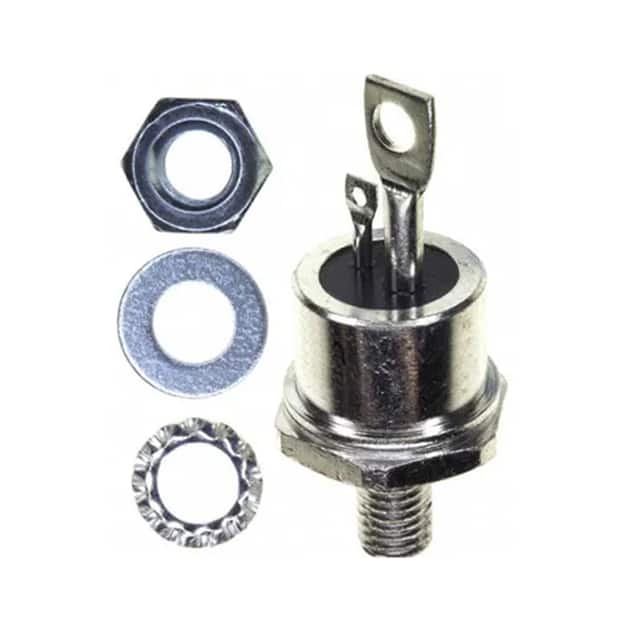

50RIA60 Vishay

50RIA60

SKU: 86376

Manufacturer: Vishay

SCR Diode 600V 80A(RMS) 1490A 3-Pin TO-65

Request Free Samples

1440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.30.00.80
Automotive	No
PPAP	No
Maximum Rate of Rise of Off-State Voltage (V/us)	1000
Maximum Rate of Rise of On-State Current (A/us)	200
Maximum Gate Trigger Voltage (V)	2.5
Maximum Gate Trigger Current (mA)	100
Surge Current Rating (A)	1490
Maximum Holding Current (mA)	200
Repetitive Peak Reverse Voltage (V)	600
Maximum Gate Peak Inverse Voltage (V)	10
Peak On-State Voltage (V)	1.6@157A
Repetitive Peak Forward Blocking Voltage (V)	600
Rated Average On-State Current (A)	50
RMS On-State Current (A)	80
Repetitive Peak Off-State Current (mA)	15
Maximum Latching Current (mA)	400
Peak Gate Power Dissipation (W)	10
Average Gate Power Dissipation (W)	2.5
Circuit Fusing Consideration (A²S)	10180
Phase Control	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Original Package	TO-65
Pin Count	3
Standard Package Method	TO-208AC
Terminal Form	Stud
Package Height	42.5(Max)
Package Length	19.2
Package Width	17.35
PCB changed	3
