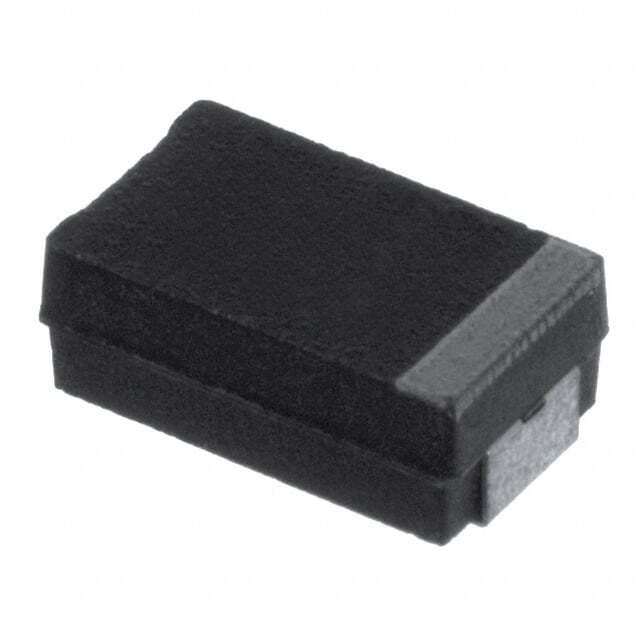

293D474X0050C2T

SKU: 22692

Manufacturer: Vishay

Cap Tant Solid 0.47uF 50V C CASE 20% (6 X 3.2 X 2.5mm) Inward L SMD 6032-28 6.7 Ohm 125°C T/R

1340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Solid
Capacitance Value	0.47uF
Tolerance	20%
Voltage	50VDC
ESR (Ohm)	6.7
Equivalent Series Resistance Type	Standard
IR (mA)	130
IL (uA)	0.5
Polarity	Polar
Dissipation Factor (%)	4
Fail Safe with Built-in Fuse	No
High Shock and Vibrating	No
Case Code	C
Case Style	Molded
Construction	Flat
Terminal Form	Surface Mount
Terminal Form	Inward L
Number of Terminals	2
Size (mm)	6 X 3.2 X 2.5
Case Code - in	6032-28
Temperature Range @ Derated Voltage (°C)	85 to 125
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	6
Depth (mm)	3.2
Height (mm)	2.5
Length Tolerance (mm)	±0.3
Depth Tolerance (mm)	±0.3
