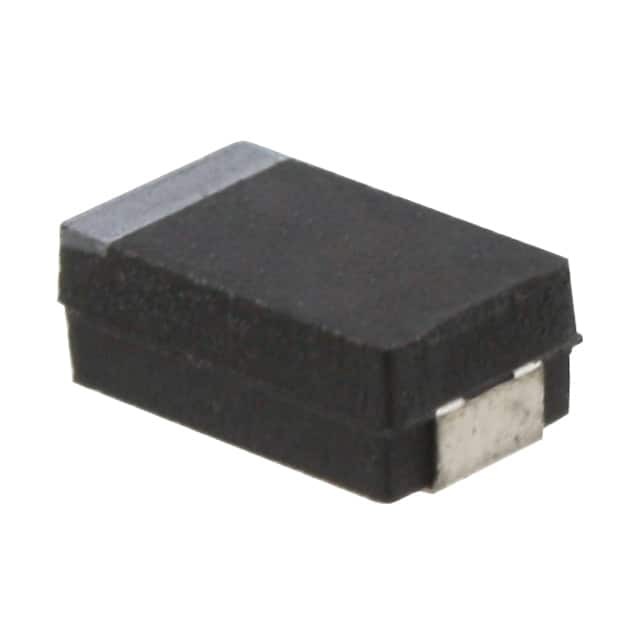

293D157X9010D2T

SKU: 36896

Manufacturer: Vishay

Cap Tant Solid 150uF 10V D CASE 10% (7.3 X 4.3 X 2.8mm) Inward L SMD 7343-31 0.6 Ohm 125°C T/R

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Solid
Capacitance Value	150uF
Tolerance	10%
Voltage	10VDC
ESR (Ohm)	0.6
Equivalent Series Resistance Type	Standard
IR (mA)	500
IL (uA)	15
Polarity	Polar
Dissipation Factor (%)	8
Fail Safe with Built-in Fuse	No
High Shock and Vibrating	No
Case Code	D
Case Style	Molded
Construction	Flat
Terminal Form	Surface Mount
Terminal Form	Inward L
Number of Terminals	2
Size (mm)	7.3 X 4.3 X 2.8
Case Code - in	7343-31
Temperature Range @ Derated Voltage (°C)	85 to 125
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Length (mm)	7.3
Depth (mm)	4.3
Height (mm)	2.8
Length Tolerance (mm)	±0.3
Depth Tolerance (mm)	±0.3
